Description

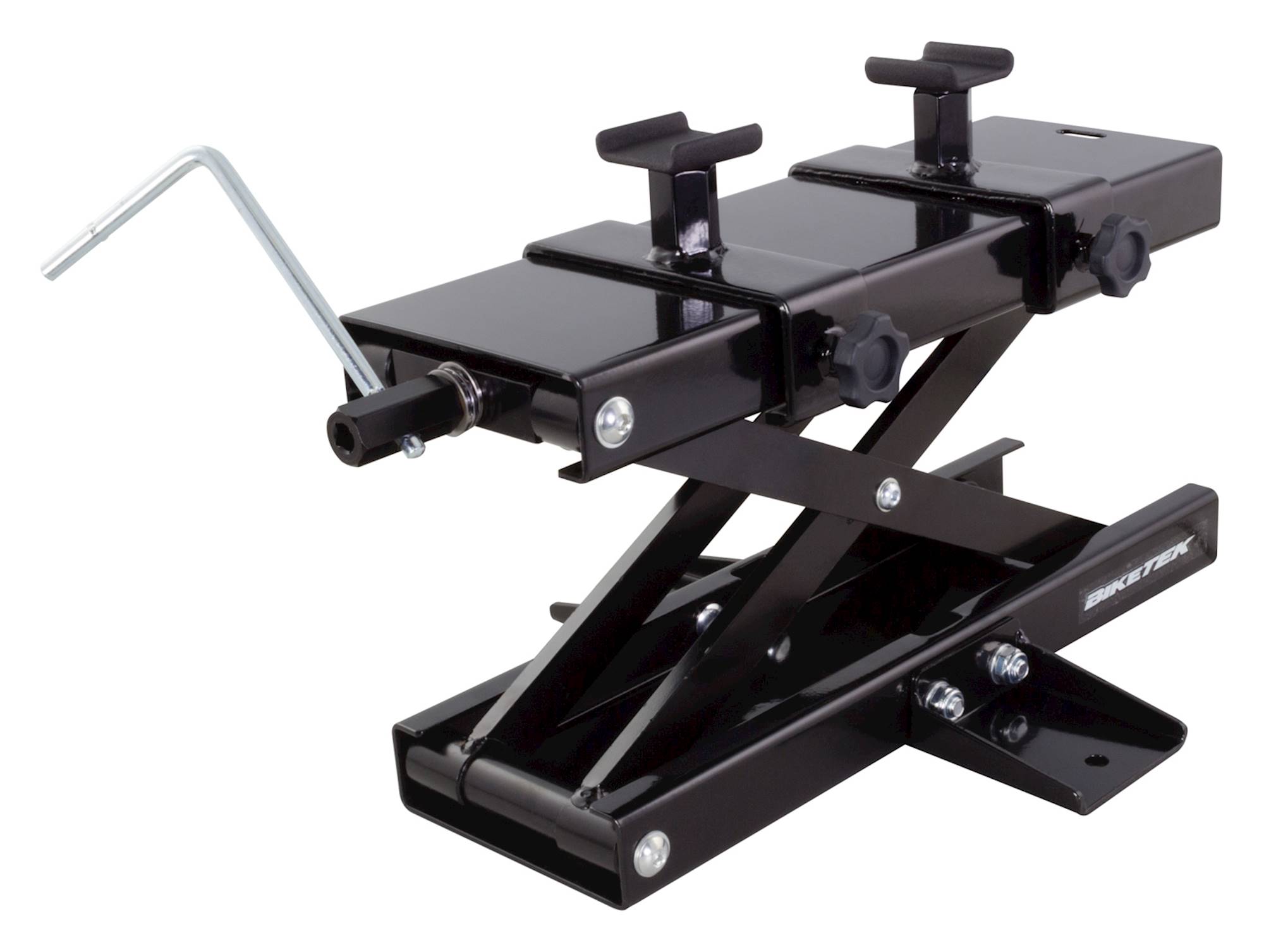

This platform lift jack is designed for raising motorcycles with either a flat base or a tubular frame. A hand-operated scissor-lift mechanism raises the top-platform from a height of 100mm to 340mm.

Features two width and height adjustable support struts, with rubber protector inlays, to locate under tubular framed bikes – these support struts are removable when lifting flat based bikes.

Base section has two mounting plates, enabling the lift jack to be bolted permanently to table lifts and work stations. Platform size 450mm x 150mm. Max load 500kgs.
Hand operated|Range 100mm to 340mm|Max load 500kgs|Platform size 450mm x 150mm|

Barcode

5034862357359

Type

road

Family

lifts
